Vast

The best image-processing technology and affordable price






  • Vast Vast 1500C

  • ∴ Vast 1500C : 1500 (X) x 1200 (Y) x 100 (Z) mm
    ∴ DC servo motor drive
    ∴ 0.0001 mm glass scale on XYZ
    ∴ DCC, Joystick, Keyboard Motion Controls
    ∴ High resolution color CCD camera
    ∴ PCI color frame grabber
    ∴ 12:1 programmable zoom lens
    ∴ Programmable LED section ring illumination
    ∴ Coaxial top and back light
    ∴ iView-PRO metrology software
    ∴ Pentium IV Computer with 19″ LCD Monitor

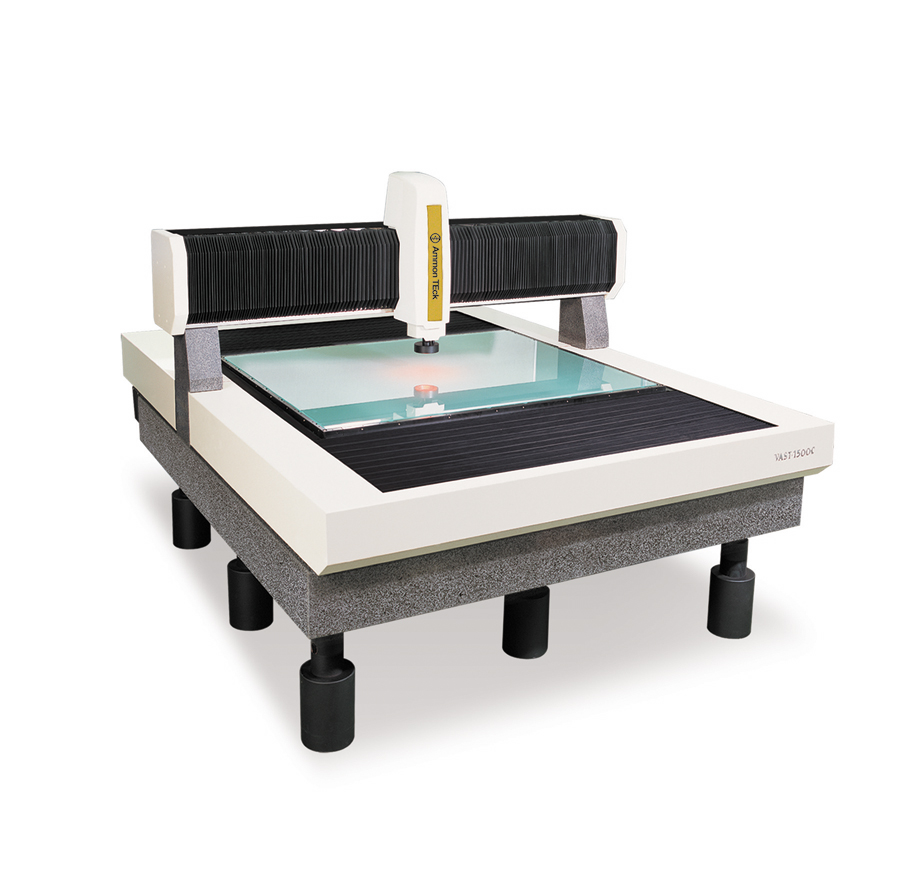

Vast 1500C
Feature

Vast Series Specification

MODEL

Vast Series

Vast 1000C

Vast 1200C

Vast 1500C

ㆍ X-Y-Z PERFORMANCE

Travel (X x Y x Z)

1000 x 1000 x 100mm

1200 x 1000 x 100mm

1500 x 1200 x 100mm

Linear Accuracy (XY:U2)

4.0 + L/300(µm)

Linear Accuracy (Z:U1)

3.0 + L/150(µm)

Glass Surface Area

1180 x 1130mm

1360 x 1130mm

1620 x 1360mm

Load Capacity

35Kg

35Kg

40Kg

Resolution

0.1µm

Stage Drive System

DC Servo Motor Control

Speed

XY : 300mm per second; Z : 100mm per second

Acceleration

XY : 500mm per second; Z : 200mm per second

Base Material

Granite

X-Y Material

Granite / Aluminum Alloy

Bearings X and Y

Linear Motion Guide

Power Supply

110/220 VAC, 10Amp, 50-60Hz

Optics

12:1 Zoom : 0.58x ~ 7.0x (20x ~ 245x) with 1x Objective Lens

Video System

Color CCD Camera

Illumination

Coaxial Top Light / Back Light

LED Ring Lights

LED Ring(White) : 5 Rings* 8 Sectors * 40 Segments

Laser Probe(Option)

CCD Laser with Analysis Software

Touch Probe(Option)

RENISHAW Touch Probe Kits with iTouch Software

Motion

DCC, Joystick, Mouse

Computer

Core 2 DUO / 19" LCD Monitor / 2GB RAM

Software

New iView-PRO / Windows XP Operating System

Platen Fixture(Option)

Pneumatic Auto Platen Fixture

ㆍ PHYSICAL SPECIFICATIONS

Width

1600mm

1750mm

2400mm

Length

2700mm

3000mm

3000mm

Height

1570mm

1570mm

1670mm

Weight

3800Kg

4000Kg

6000Kg

*Product configuration subject to change without notice.
